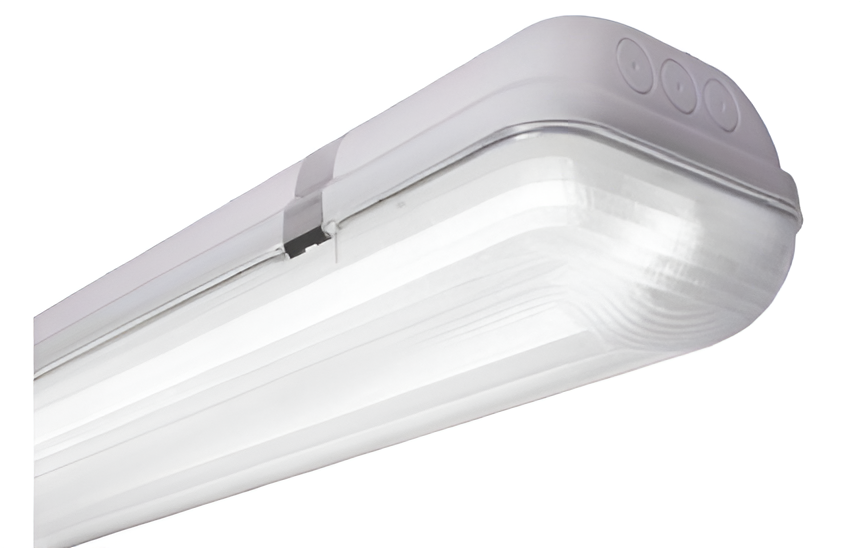

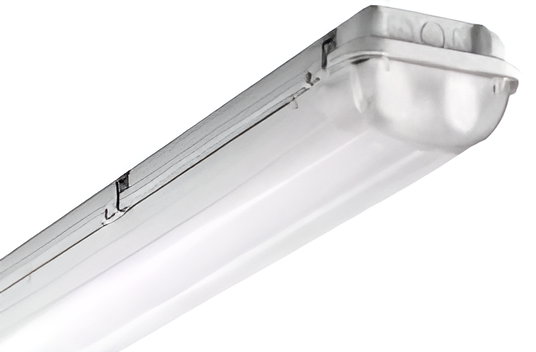

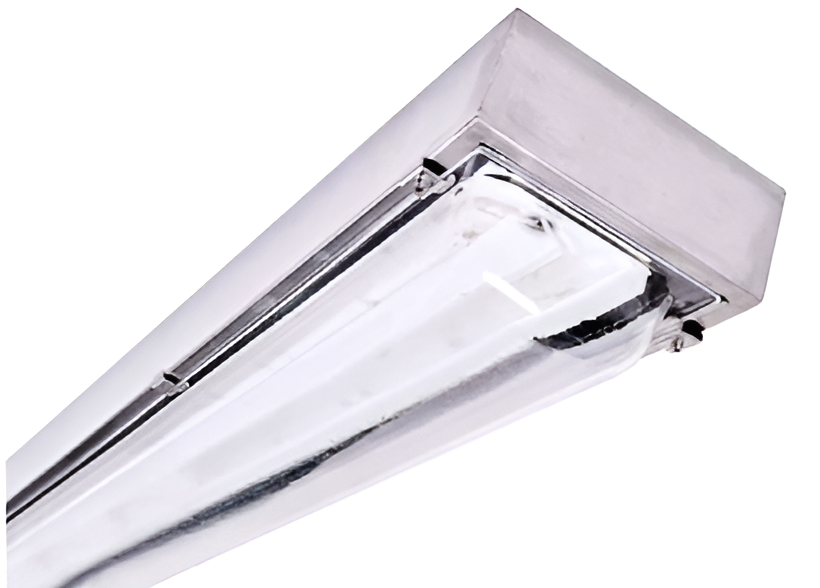

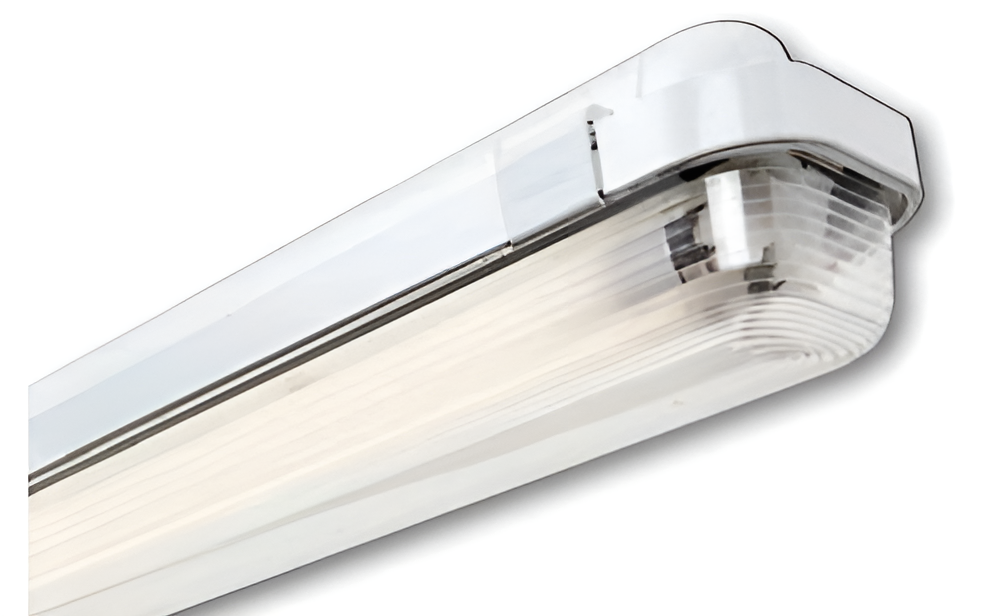

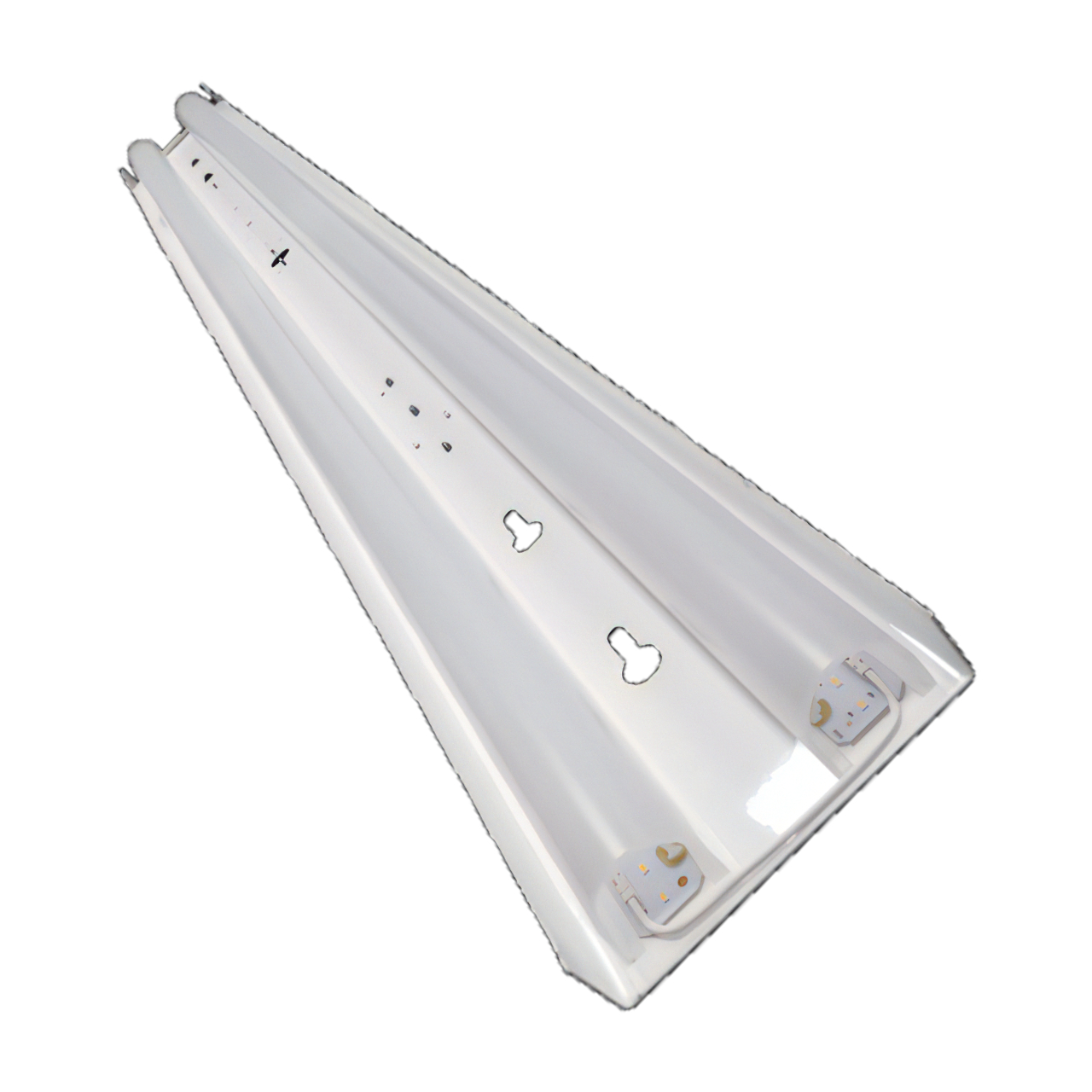

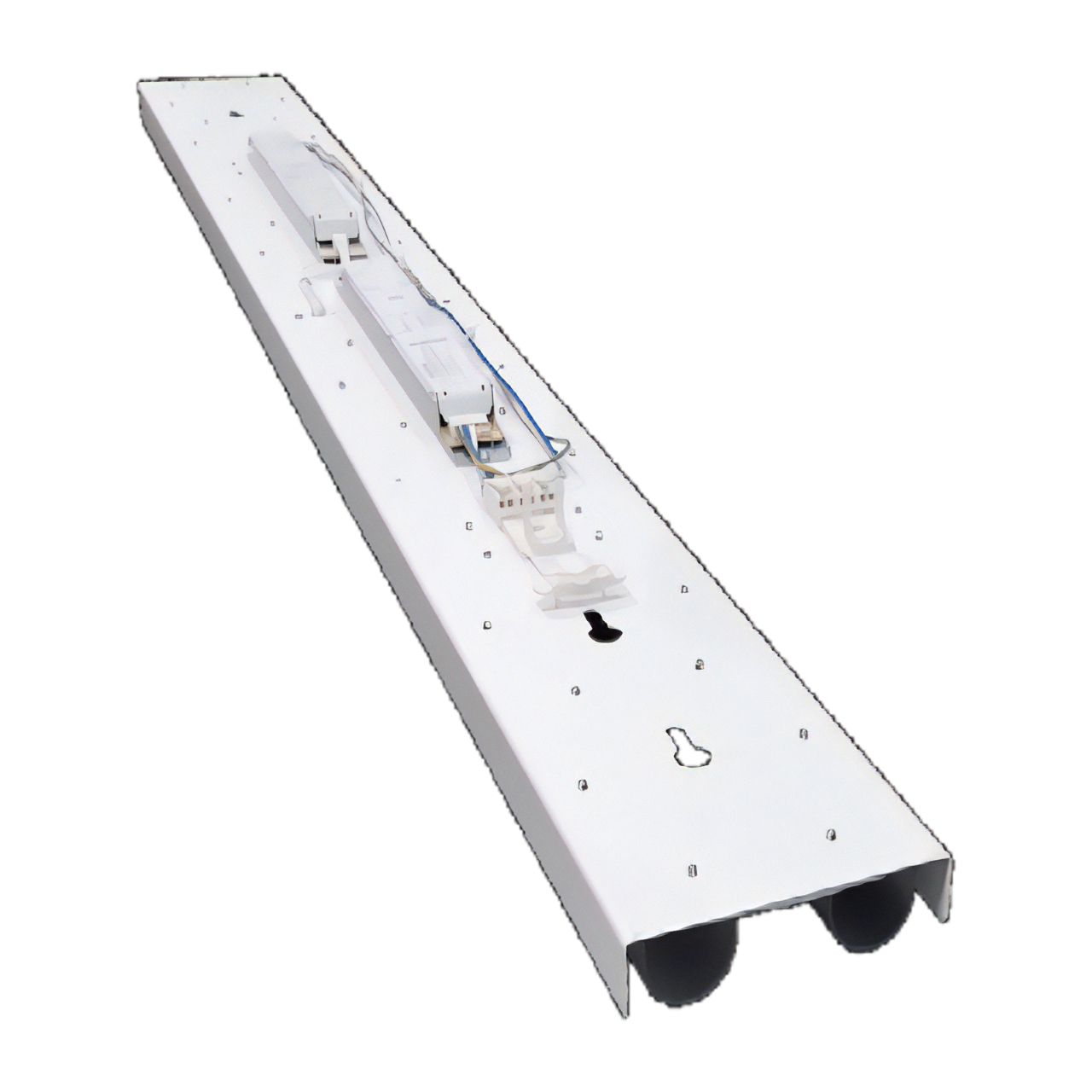

ICL-RTR RETROFIT GEAR TRAY
ICL-RTR is a New Zealand made retrofit LED light source solution designed to replace traditional fluorescent light gear trays in ingress rated, under verandah, and hygiene industrial situations. ICL-RTR is designed using high efficiency Zhaga compliant LED boards and advanced quality LED drivers. Glare reduction, energy efficiency and lumen maintenance are at the forefront of this design with an assurance light levels will either equal, or improve on the existing luminaire. Available in standard and emergency versions. ICL-RTR is available in a variety of sizes or CCT, and can be custom made to your requirements.
| ORDER CODE | DESCRIPTION |
| Operating Temperature: | -40ºC to +65ºC |
| Supply Voltage: | 220 V – 240 V |
| Frequency: | 50 / 60 Hz |
| Over Voltage Protection: | 320 V AC, 48h |
| CCT: | 4000K standard (3000K, 5000K & 6500K) |
| Beam Angle: | 120° |
| THD: | <20% |
| Dimensions: | (W)127mm x (H) 23mm x (L) 1530mm |
| Amperage: | 325 mA |
| Watts: | 90W |
| CRI : | >80 |
| Macadam: | 3 Step |
| Life: | 50,000 hours |
| Warranty: | 5 years |
